Product Summary
Package 6PDIP
Output Type AC
Number of Channels per Chip 1
Minimum Isolation Voltage 2500 Vrms
Typical Input Voltage 1.15 V
Peak Output Voltage (Vdrm) 400 V
Zero-Crossing Circuit No
Maximum Input Voltage 1.3 V
Maximum Output Voltage 280 Vac
Maximum Reverse Voltage 5 V
Maximum Turn-On Time 10(Typ) us
Operating Temperature -30 to 85 °C
Category Triac and SCR Outpu t Photocouplers
Manufacturer Toshiba
Parametrics
TLP541G absolute maximum ratings: (1)Forward current:70mA ; (2)Forward current derating (Ta≥25℃):-0.7mA/℃; (3)Peak forward current (100μs pulse, 100pps):1A ; (4)Reverse voltage:5V ; (5)Junction temperature:125℃; (6)Peak forward voltage (RGK = 27kΩ):400V ; (7)Peak reverse voltage (RGK = 27kΩ):400V ; (8)On-state current:150mA ; (9)On-state current derating (Ta≥25℃):-2.0mA/℃; (10)Peak one cycle surge current:2A ; (11)Peak reverse gate voltage:-5V ; (12)Junction temperature:100℃; (13)Storage temperature range:-55℃ to 125℃ ; (14)Operating temperature range:-30℃ to 100℃; (15)Lead soldering temperature (10 s):260℃; (16)Isolation voltage (AC, 1 min., R.H. ≤ 60%):2500Vrms.
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |

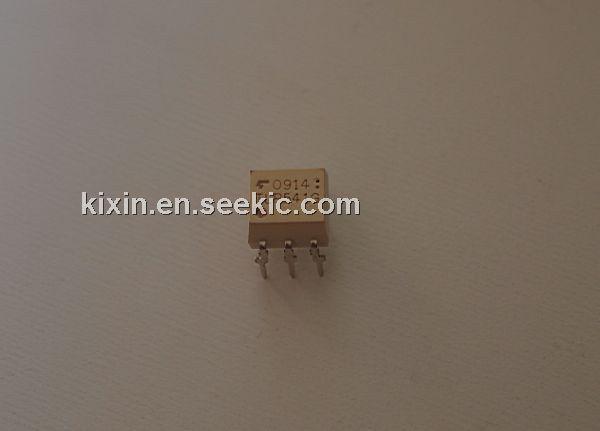

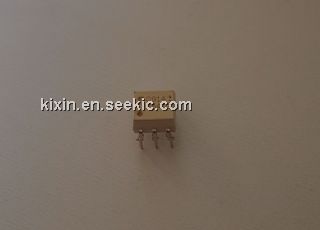

![]() TLP541G |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||
![]() |
![]() TLP541G(N,F) |
![]() Toshiba |
![]() Triac & SCR Output Optocouplers 400Vdrm 2500Vrms Low trigger current |
![]() Data Sheet |
![]() Negotiable |
|
