Product Summary
Specifications:
Package 4PDIP
Output Type DC
Number of Channels per Chip 1
Typical Forward Voltage 1.15 V
Maximum Collector Current 50 mA
Maximum Collector Emitter Voltage 55 V
Maximum Forward Voltage 1.3 V
Minimum Forward Voltage 1 V
Minimum Isolation Voltage 5000 Vrms
Maximum Collector Emitter Saturation Voltage 400 mV
Maximum Current Transfer Ratio @ Current 600 %
Maximum Input Current 60 mA
Maximum Power Dissipation 250 mW
Maximum Reverse Voltage 5 V
Operating Temperature -25 to 85 °C
Category Transistor and Phot ovoltaic Output Phot oCouplers
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

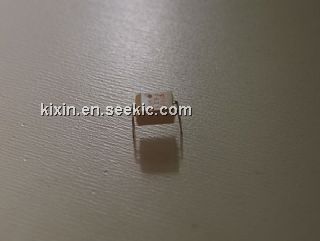

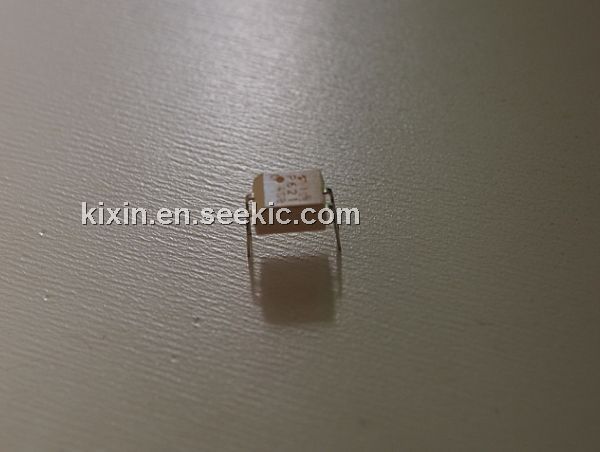

TLP621GBFT |
Toshiba |
Transistor Output Optocouplers 55Vceo 5000Vrms |
Data Sheet |
Negotiable |
|
|||||
TLP621GBT |
PHOTOCOUPLER TRANS-OUT 4-DIP |
Data Sheet |
Negotiable |
|
