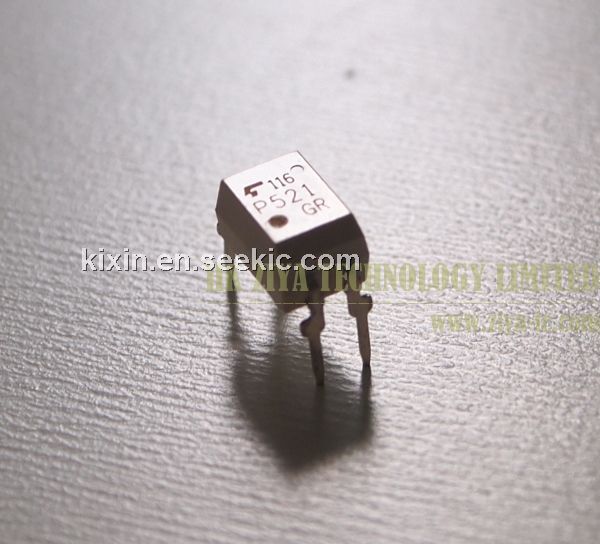

Product Summary

Package 4PDIP
Output Type DC
Number of Channels per Chip 1
Typical Forward Voltage 1.15 V
Maximum Collector Current 50 mA
Maximum Collector Emitter Voltage 55 V
Maximum Forward Voltage 1.3 V
Minimum Forward Voltage 1 V
Minimum Isolation Voltage 2500 Vrms
Maximum Collector Emitter Saturation Voltage 200(Typ) mV
Maximum Current Transfer Ratio @ Current 600 %
Maximum Input Current 70 mA
Maximum Power Dissipation 250 mW
Maximum Reverse Voltage 5 V
Operating Temperature -55 to 85 °C
Category Transistor and Phot ovoltaic Output Phot oCouplers

Manufacturer Toshiba
