HCPL-3150

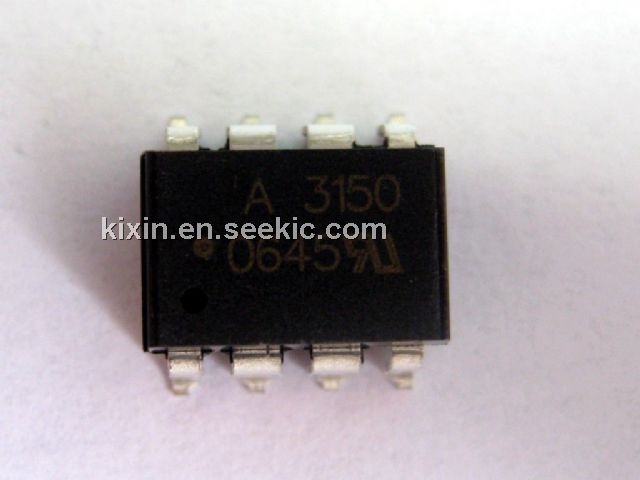

The HCPL-3150 is a 0.5 Amp Output Current IGBT Gate Drive Optocoupler. The device consists of an LED optically coupled to an integrated circuit with a power output stage. The HCPL-3150 is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications.
